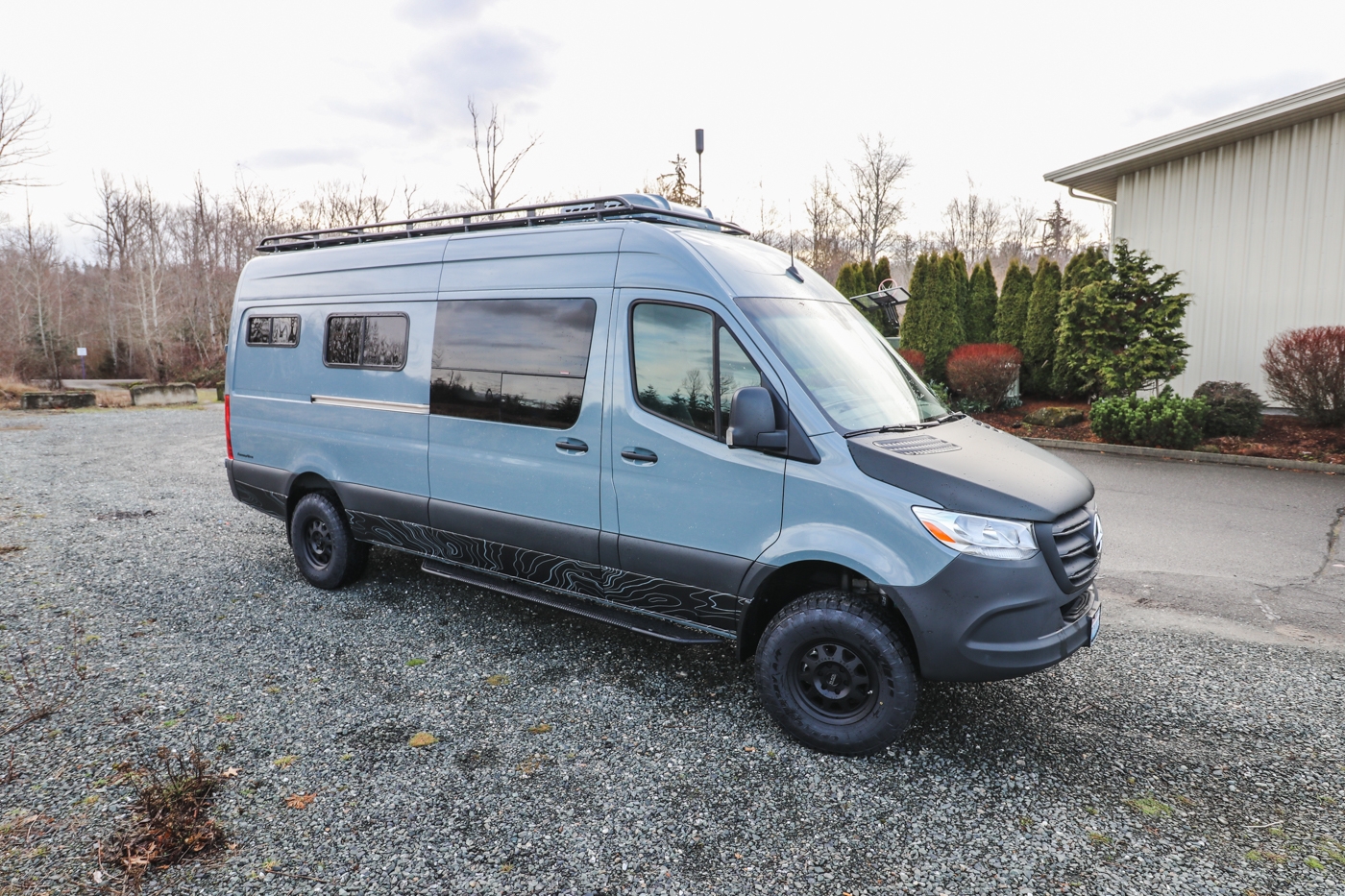

2022 Sprinter 170″ 4×4

Van Conversion


  • Insulation: Rubberized underlayment floor insulator,  Rigid insulation foam for the ceiling.  mineral wool and 3 in 1 underlayment with vapor barrier insulation.
  • Paneling: Wood wall panels fabric wrapped. Rear and sliding door pillars fabric wrapped.
  • Floor: Wood grained laminate plank floor; Diamond plate rubber; aluminum trim; partially enclosed step with cubby.
  • Bed space: 1/2 fixed bed platform with 1/2 wood slide out extension.
  • 6″ king sized memory foam firm mattress cut into (2) sections with crypton cushion covers.
  • L-shaped dinette bench seats with storage to convert to bed
  • 4″ foam dinette cushions with crypton fabric cushion covers, and additional cushion for ottoman
  • 1″ Maple edge grain butcherblock countertop and flip up countertop
  • True Induction Mini Duo Double Burner Energy Efficient Induction Cooktop and mounted into a drawer.
  • Moen Faucet  Alder Stainless Steel Pull-Down Sprayer Kitchen and Undermount stainless steel sink
  • Isotherm DR 85 Inox Stainless Steel Drawer Refrigerator
  • Black and Decker microwave
  • Nature’s head composting toilet
  • Moisture sealed wet room, white FRP walls, Nautilus self-cleaning door, and aluminum shower pan.
  • 36 gallon fresh water tank mounted in garage space, plumbing to fixtures, water pump, water pump shut off, tank monitor.
  • Custom welded aluminum 10 gallon gray water tank mounted underneath van, electric pump, tank monitor.
  • 4 gallon electric water heater.
  • Outdoor shower quick release attachment to water tank and a Quick release hose attachment to water tank with high pressure pump.
  • Pull out gear tray with 500lb strength drawer slides with fork mounts.
  • Custom welded Ski rack mounted on top of power system
  • Snap on shoe storage pockets for rear doors.
  • 10 interior ceiling puck lights with dimmable switches.
  • Set of reading lights for bed platform.
  • Exterior grade light mounted to interior of sliding door to illuminate outdoor area to both sliding and rear doors.
  • Maxxair 10 speed fan with waterproof shroud.
  • Floor mount air filter to bring in cool, filtered air front underneath van, and better circulate air within van.
  • Webasto diesel cabin heater mounted underneath passenger side seat.
  • Nomadic Cooling 3000 12V Roof mount system
  • CRL T-vent windows for sliding door and driver’s side front panel.
  • 500 amp hour LiFePO4 lithium battery bank with built in battery management system, connected to alternator with battery separator; master disconnect switch.
  • 3000 watt pure sine AIMS inverter.
  • 60 amp battery charger with 15 amp plug in.
  • (2) 60 cell solar panels, Victron solar charge controller, and Victron smart solar battery monitor.
  • We Boost LTE booster.
  • Kenwood Stereo built into the cabinet.
  • Custom roof rack
  • Owl Vans rear door tire carrier and sherpa rack to hold B2 bike carrier.
  • Van Compass “Stage 4.3” front and rear adjustable Falcon shocks, and rear 3 leaf mini spring pack
  • Black Rhino 16″ Stadium with TOYO AT3 tires; modify mudflaps to fit larger tires
  • Passenger and driver side custom welded low clearance step.
  • Flush L-track mounted to ceiling for attachment point of hammock mounts.
  • Vinyl wrap for hood and rocker panels.
  • Van Life Magnetic bug screen for rear and side door
